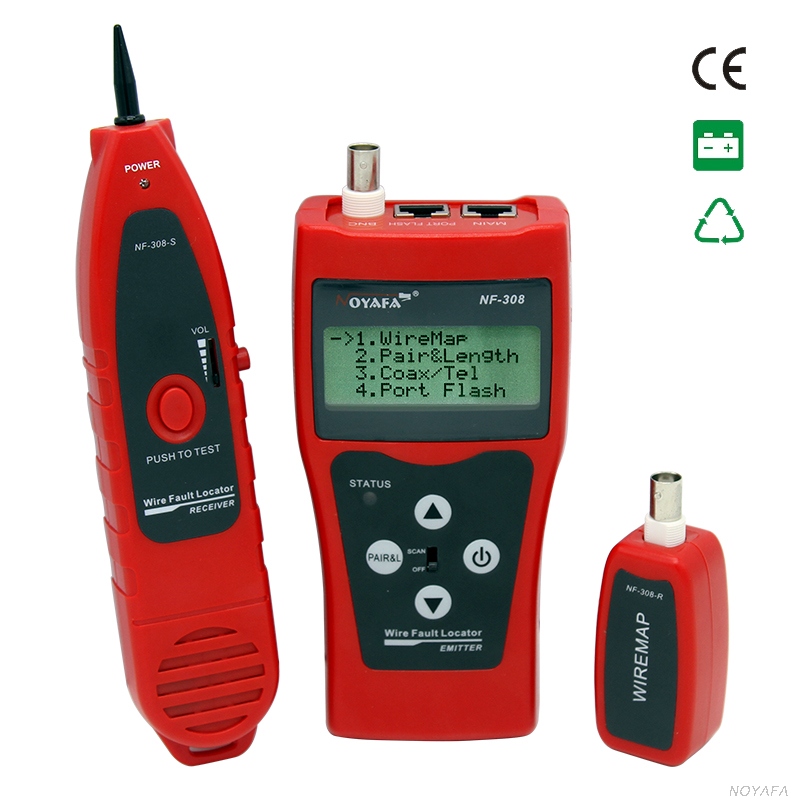

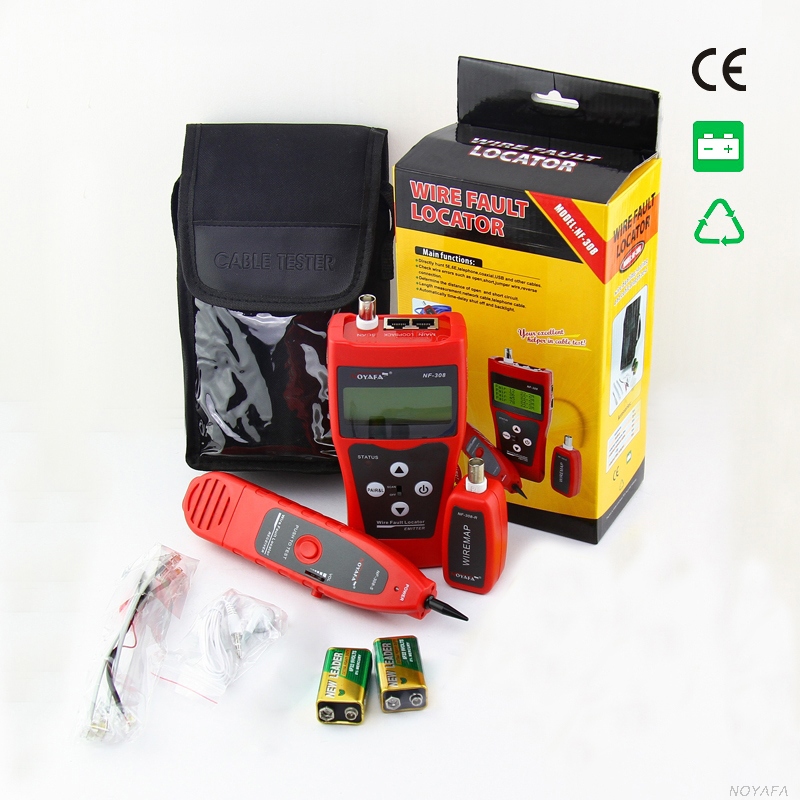

Description
– Hub blink for locating network port by the flashing port light on Hub / Switch.
– Check wiring error in 5E, 6E, coaxial cable, such as open circuit,short circuit, jumper wire, reverse connection.
– Locate the wiring or connection error.
– Measure cable length up to 1000m and locate the breakage point.
– Polarity test function measure DC voltage.
– Memory and storage for calibration data.
– Automatically time-delay shut off and Low battery alarm function.
| Transmitter specifications | |
| Indictor | LCD 53×25 mm, with backlight |
| Tone frequency | 225kHz |
| Max. distance of transmission | 2 km |
| Max. distance of cable map | 1 km |
| Max. working current | Less than 70mA |
| Tone mode | 2 Tones adjustable |
| Compatible connectors | RJ11，RJ45, BNC, USB |
| Max. signal voltage | 15Vp-p |
| Function selection | 3 position buttons & 1 power switch |
| Function and faults LCD display | LCD display ( wiremap, Tone, short, , No adapter, Low battery ) |
| Cable map indication | LCD (#1-#8) |
| Shielded indication | LCD ( #9) |
| Battery Type | DC9.0V（NEDA 1604/6F22 DC9V x 1pcs） |
| Dimension(LxWxD) | 185x80x32mm |
| Receiver specifications | |
| Frequency | 225kHz |
| The Max. working current | Less than 70mA |
| Earjack | 1 |
| LED illumination | 2 |
| Battery Type | DC9.0V（NEDA 1604/6F22 DC9V) x1pc |
| Dimension(LxWxD) | 218x46x29 mm |
| Remote unit specifications | |
| Compatible connectors | RJ45, BNC |
| Dimension(LxWxD) | 107x30x24mm |
